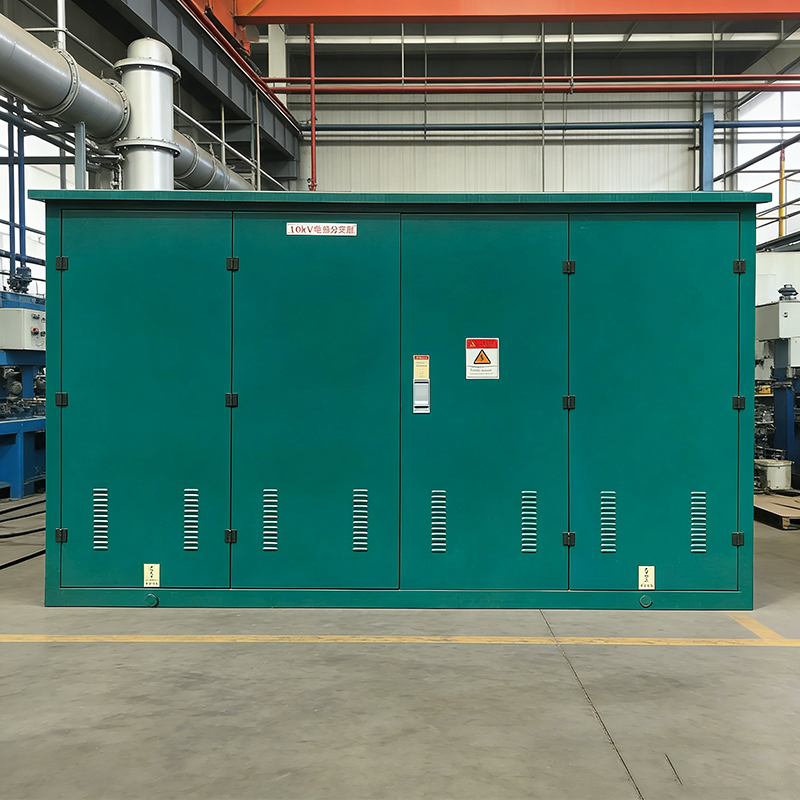

Customized European-style Distribution Box Rongda Electric YBM 630A-1600A Capacity Three-phase Input Voltage 10kV 6kV 35kV IP40
Customized European-style Distribution Box with 630A-1600A Capacity Three-phase Input Voltage 10kV 6kV 35kV
Structural Characteristics
Overall Framework

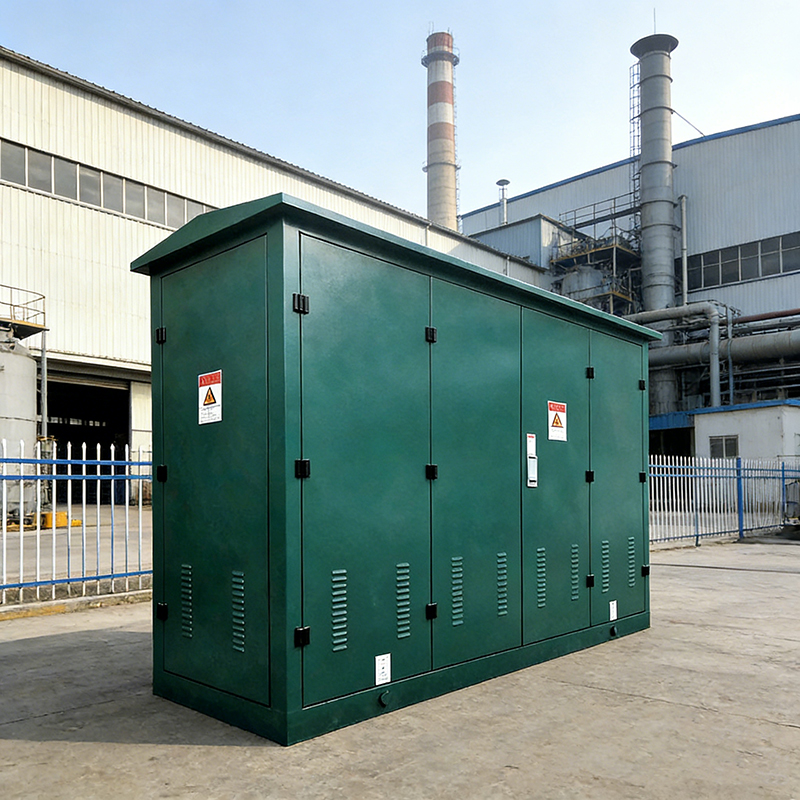

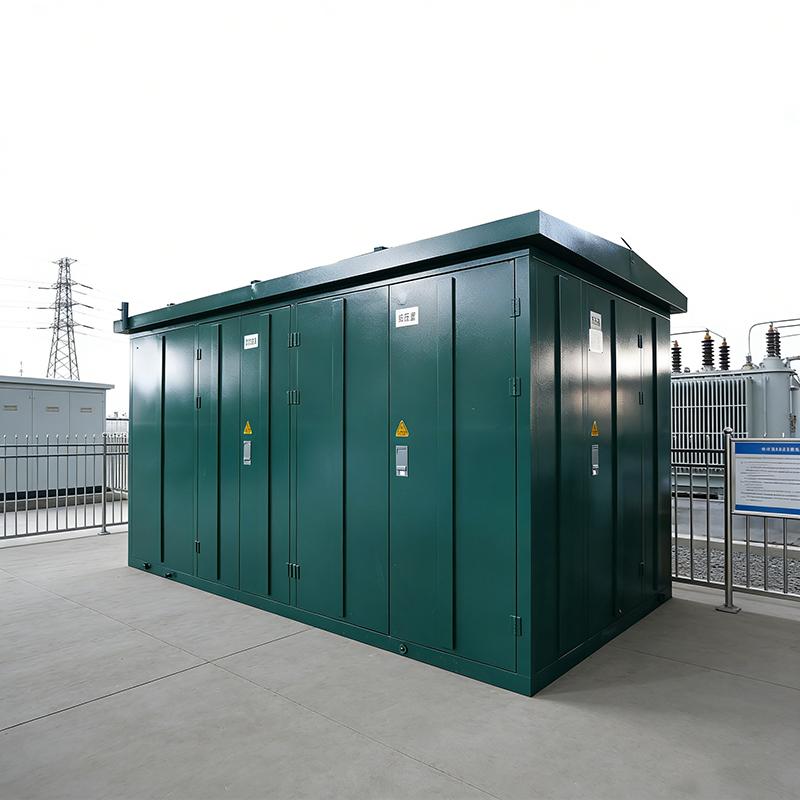

It is a frame structure, made by welding steel sections. The frame is covered with aluminum alloy plates and coated with a special paint layer, featuring excellent mechanical properties, weather resistance, and corrosion resistance.
Internal Layout

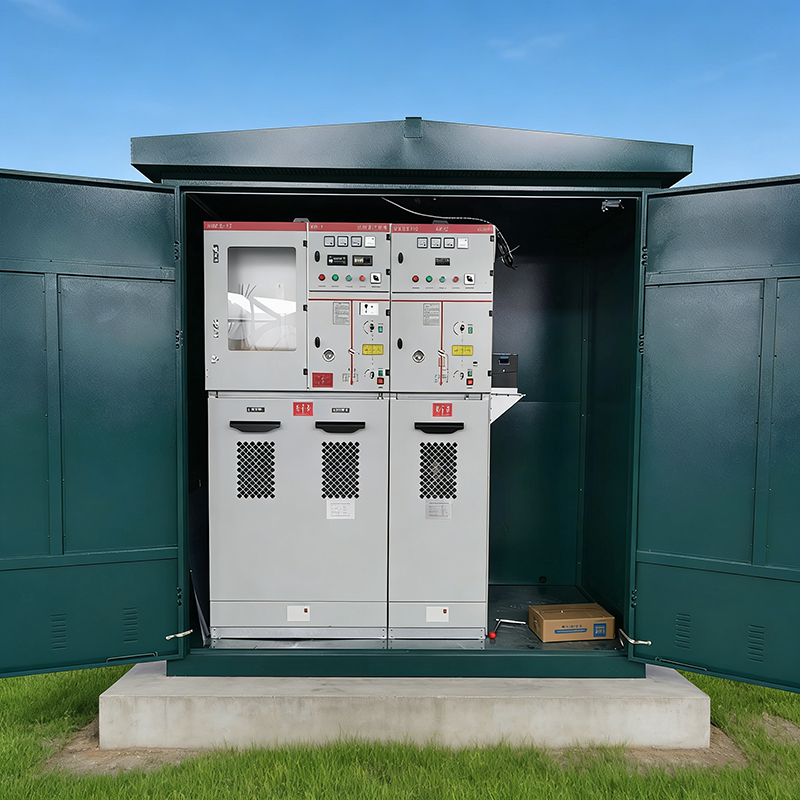

The interior of the box is divided into three independent compartments: the high-voltage room, the transformer room, and the low-voltage room. Each compartment is strictly isolated to ensure safe operation.
Main Components
High-voltage Switchgear
The high-voltage room is equipped with high-voltage ring network switchgear, which can be equipped with pressure-type or vacuum-type load switches, and has the "five prevention" function. The high-voltage connection uses fully sealed cable plugs to achieve full insulation and zero potential, and the exposed electrical parts are heated with plastic tubes.
Transformer
It can be either dry-type or oil-immersed-type. The oil-immersed type can be selected with or without oil reservoir and fully sealed; the dry-type transformer has low loss, low noise, and low partial discharge characteristics.
Low-voltage Distribution Equipment
The low-voltage room has the overall functions of low-voltage complete switchgear, including busbar metering cabinets, main circuit breaker cabinets, low-voltage feeder cabinets, capacitor compensation cabinets, etc. It adopts a plate structure and introduces German Winer technology to achieve a copper bar connection scheme without drilling holes.
Technical Characteristics
Intelligent Monitoring
Some YBM European-style box transformers are equipped with an IoT cloud platform, which can monitor key data such as transformer temperature, load rate, and three-phase imbalance in real time. It supports remote control via mobile APP/PC, automatic fault alarm, and push of maintenance plans.
High Efficiency and Energy Saving
It uses SCB13/14 low-loss dry-type transformers, with a load loss lower than the national standard by 15%. It can also be equipped with a photovoltaic cover to realize a power generation self-supply monitoring system, with an annual carbon reduction of ≥2.6 tons.
Fast Delivery
Factory pre-installation and commissioning, including standard test reports. The on-site installation cycle is ≤3 days, and a one-stop delivery package of electrical interface diagrams, foundation drawings, and grid connection acceptance documents is provided.
Frequently Asked Questions
Q Are you a manufacturer or a trader?
We have been a professional manufacturer of power distribution equipment for over 23 years.
Q Can I get some samples?
Yes, sample orders can be used for quality inspection and market testing.
Q Can I print a logo on your product?
Yes, of course. We accept all OEM orders, please contact us and provide us with your design. We will provide you with a reasonable price and provide you with a sample coin as soon as possible.
Q How is your factory doing in terms of quality control?
Before mass production, there is always a pre production sample; Always conduct 100% final inspection before shipment.
Q Why should I buy from you instead of someone else?
Firstly, we can provide all clients with highly professional support consisting of IT consultants and service teams. Secondly, our main engineers have over 15 years of experience in developing OEM products. We only focus on providing excellent quality and competitive pricing to valuable customers worldwide.
Q What are your payment terms?
Usually through Trade Assurance or wire transfer. Other payments can also be negotiated.
